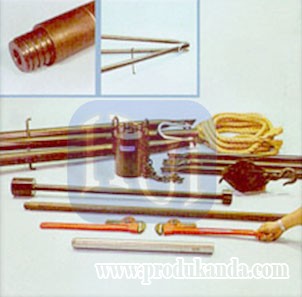

Standard Penetration Test
| ASTM D-1586AASHTO T-206 |
| For driving a split barrel sampler to obtain |
| a representative soil sample and measure the soil resistance to penetration. |
| SO-131Split Barrel SamplerHerdened machined steel, 1 3/8" i.d.18" length1 Set |
| SO-132Sampling RodSteel pipe, 1.5 m length20 Pcs |
| SO-133Drive Weight Assembly |
| Consist of |
| SO-133.1HammerSteel, 63.5 kg weight1 Pc |
| SO-133.2AnvilMachined Steel1 Pc |
| SO-133.3Guide Rod Steel, 76.2 cm drop height1 Pc |
| SO-134 Tripod Assembly |
| Consist of |
| SO-134.1Tripod Stand Steel pipe1 Pc |
| SO-134.2Pulley20 cm dia 1 Pc |
| SO-134.3Rope3/4" dia x 15 mtr1 Rol |
| SO-137Vertical GuideMachined Steel1 Pc |
| GE-739Pipe Wrench24" length2 Pcs |
